CARD for Superset

CARD for Superset is the connector that completes the Schema Builder → Apache Superset pipeline. It runs as a Docker container on the same SureCentric Docker network as Superset, DuckDB, PostgreSQL, and the Schema Builder services — making it a zero-configuration bridge between JSON-LD schema authoring and live BI dashboards.

Apache Superset Dashboard Creation via SchemaBuilder CARD API

What It Does

When you click ▶ Provision in the CARD Profile Editor, CARD for Superset:

Reads the active CARD Profile config from PostgreSQL
Generates CREATE TABLE DDL from the active JSON-LD schema (via the DuckDB SQL plugin)
Executes the DDL against DuckDB — creating the schema tables
Generates INSERT INTO seed data via the Seed Dataset Generator plugin (if enabled)
Executes the INSERTs against DuckDB — populating the tables with realistic data
Authenticates with the Superset REST API
Creates or finds the ClinicalDuckDB database connection in Superset
Registers each table as a Superset Dataset
Optionally creates three seed charts and a starter dashboard
Returns per-step results to Schema Builder as a success/failure toast

Zero manual steps in Superset. The full pipeline completes in under 30 seconds.

Architecture

┌─────────────────────────────────────────────────────────────────────────┐
│  Schema Builder  (Vue 3, :5173)                                         │
│                                                                         │
│  1. User opens/imports JSON-LD schema (e.g. eClinical ontology)        │
│  2. Mapper View → select nodes → choose "SQL DDL (DuckDB)"            │
│  3. CARD Profile Editor → configure Schemas, Datasets, Plugins, Viz   │
│  4. Click [▶ Provision]                                                │
└─────────────────────────────┬───────────────────────────────────────────┘
                              │  POST /api/sb/card-profiles/:id/provision
                              ▼
┌─────────────────────────────────────────────────────────────────────────┐
│  card-api  (Node.js 20 / Express, :3099)                               │
│                                                                         │
│  Step A: Read CARD Profile config from PostgreSQL                      │
│  Step B: Generate DDL from active schemas (sql-duckdb plugin)          │
│  Step C: Execute DDL against DuckDB (CREATE TABLE statements)          │
│  Step D: Generate seed data (Seed Dataset Generator, faker.js)         │
│  Step E: Execute INSERTs against DuckDB                                │
│  Step F: Authenticate with Superset → POST /api/v1/security/login     │
│  Step G: Create/find ClinicalDuckDB database connection                │
│  Step H: Register each table as a Superset Dataset                     │
│  Step I: (optional) Create 3 seed charts + starter dashboard           │
│  Step J: Return per-step results → Schema Builder toast                │
└─────────────────────────────┬───────────────────────────────────────────┘
                              │
              ┌───────────────┴──────────────────┐
              ▼                                  ▼
┌─────────────────────┐              ┌───────────────────────────────────┐
│  DuckDB  (v1.2.1)   │              │  Apache Superset  (:8088)         │
│                     │              │                                   │
│  clinical_site      │              │  ✅ ClinicalDuckDB (database)     │
│  patient            │◄─────────── │  ✅ Datasets (one per table)      │
│  visit              │  SQLAlchemy  │  ✅ Charts (Visits, AEs, Sites)   │
│  adverse_event      │             │  ✅ Dashboard: "[Profile] Demo"    │
└─────────────────────┘              └───────────────────────────────────┘

All services run on the SureCentric Docker network — card-api reaches DuckDB and Superset by container name, with no port exposure required between services.

Quick Start for Apache Superset

This guide walks you through standing up the full Schema Builder → CARD → Superset pipeline from scratch and creating your first live dashboard in under five minutes.

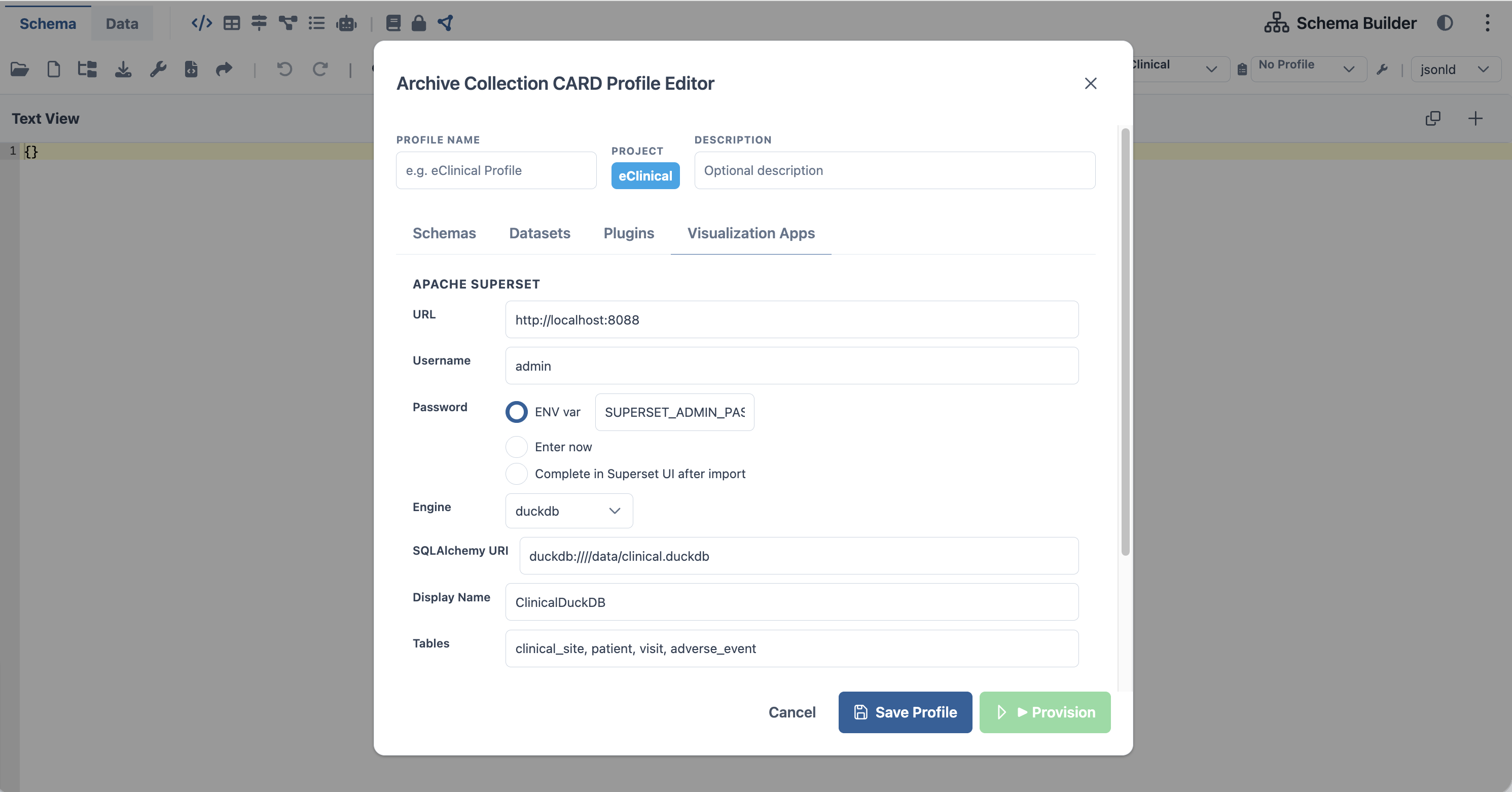

CARD for Superset Setup UI CARD Profile Editor — Visualization Apps tab with Superset connection configured

Prerequisites

Docker Desktop installed and running
The SureCentric repo cloned: git clone https://github.com/SureClinical/SureCentric.git
Node.js 20+ for running Schema Builder locally

Step 1 — Start the Docker Stack

From the repo root:

cd SureCentric/
docker compose up -d

Wait for all containers to report healthy:

docker compose ps
# NAME                    STATUS
# surecentric-card-api    Up (healthy)
# superset_app            Up (healthy)
# superset_db             Up
# superset_cache          Up
# surecentric-duckdb      Up

Verify the CARD API is responding:

curl http://localhost:3099/health
# → {"status":"ok","service":"card-api"}

Open Superset at http://localhost:8088 and log in with admin / admin (or the value of SUPERSET_ADMIN_PASSWORD in your .env).

Step 2 — Start Schema Builder

cd SchemaBuilder/meta_configurator/
npm install        # first time only
npm run dev
# → http://localhost:5173/schema-builder/#/schema

Step 3 — Create a Project

Click the ⋮ (three-dot) menu in the top-right toolbar
Select Create Project
Enter a project name (e.g. eClinical) and save
The Project Switcher in the bottom toolbar now shows your project

Step 4 — Open the CARD Profile Editor

In the bottom toolbar, next to the CARD Profile combobox, click the 🔧 wrench icon.

The CARD Profile Editor dialog opens with four tabs:

Tab	What to configure
Schemas	Select which JSON-LD schema is active for this profile
Datasets	Enable seed data and set row counts per table
Plugins	Enable `sql-duckdb` and `seed-data-generator` plugins
Visualization Apps	Configure the Superset connection

Step 5 — Configure the Visualization Apps Tab

Switch to the Visualization Apps tab and fill in:

Field	Value
Superset URL	`http://localhost:8088`
Display Name	`ClinicalDuckDB` (shown in Superset)
Username	`admin`
Password mode	`ENV var` — enter `SUPERSET_ADMIN_PASSWORD`
Database engine	`duckdb`
SQLAlchemy URI	`duckdb:////data/clinical.duckdb`
Tables	`clinical_site, patient, visit, adverse_event`

Password security

Choose ENV var mode and enter SUPERSET_ADMIN_PASSWORD. The card-api resolves the actual password from process.env.SUPERSET_ADMIN_PASSWORD at runtime — the credential is never written to the database.

Switched to the Datasets tab, enable Include seed dataset and set row counts:

clinical_site: 8
patient: 50
visit: 150
adverse_event: 30

Click [Save Profile] — the profile is saved to PostgreSQL via POST /api/sb/card-profiles.

Step 6 — Click [\u25b6 Provision]

Click the [\u25b6 Provision] button in the CARD Profile Editor footer.

Schema Builder calls POST /api/sb/card-profiles/:id/provision. The card-api runs the full pipeline:

① Authenticate with Superset   → POST /api/v1/security/login
② Create ClinicalDuckDB connection → POST /api/v1/database/
③ Register datasets             → POST /api/v1/dataset/ (one per table)
④ Return results               → Schema Builder shows success toast

A toast notification confirms each step. If any step fails, the error message tells you exactly which API call failed.

Step 7 — Build Your Dashboard in Superset

Open http://localhost:8088
Go to SQL Lab → select ClinicalDuckDB
Run a query to verify data:
```
SELECT * FROM patient LIMIT 10;
```
Go to Datasets — you should see clinical_site, patient, visit, adverse_event

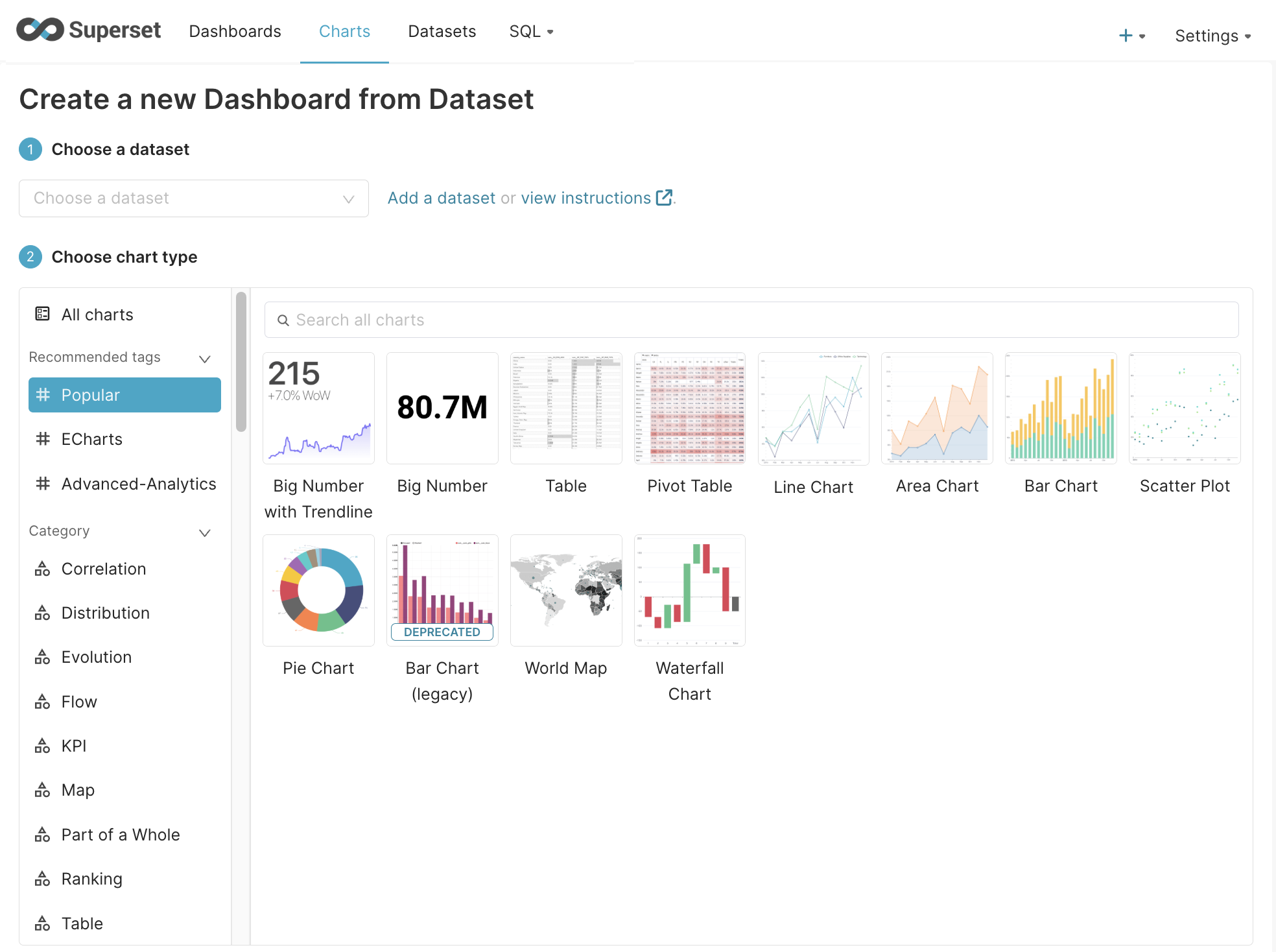

Click Charts → + Chart → select a dataset and chart type → save
Click Dashboards → + Dashboard → drag charts in

You now have a live Superset dashboard backed by your JSON-LD schema. Re-run [\u25b6 Provision] at any time to refresh the database connection and re-register datasets.

Troubleshooting

Symptom	Fix
`card-api` returns `Superset login failed: 401`	Check `SUPERSET_ADMIN_PASSWORD` env var in `docker-compose.yml` matches your Superset admin password
Datasets not appearing in Superset	Verify `tables` list in Viz Apps tab matches actual DuckDB table names; check DuckDB file path in `sqlalchemy_uri`
`card-api` returns `Profile not found`	Ensure you clicked [Save Profile] before [\u25b6 Provision]
Superset shows "Database not found"	The `ClinicalDuckDB` connection may need the `duckdb-engine` Python package; verify it is in `docker/superset/requirements-local.txt`
DuckDB file is empty	Seed data is only generated if Include seed dataset is enabled in the Datasets tab and the `seed-data-generator` plugin is active in the Plugins tab

Container	Image	Port	Role
`surecentric-card-api`	`node:20-alpine`	`3099`	CARD API — orchestrates provisioning
`surecentric-duckdb`	`datacatering/duckdb:v1.2.1`	—	DuckDB analytical database
`superset_app`	`apache/superset:4.0.0`	`8088`	Apache Superset BI platform
`superset_db`	`postgres:17`	`5432`	Superset metadata + CARD profile storage
`superset_cache`	`redis:7`	`6379`	Superset cache layer

Starting the Stack

# Start all CARD for Superset services
docker compose up -d

# Verify card-api is healthy
curl http://localhost:3099/health
# → {"status":"ok","service":"card-api"}

# Verify Superset is reachable
curl -s -o /dev/null -w "%{http_code}" http://localhost:8088/health
# → 200

Docker Network

All services join the SureCentric bridge network defined in docker-compose.yml. The card-api container addresses DuckDB and Superset by their service names (e.g., http://superset_app:8088, duckdb:///data/<profile_id>.duckdb).

The `/provision` Endpoint

POST /api/sb/card-profiles/:id/provision

Source: card-api/src/routes/cardProfiles.ts

Request

No body required. The profile ID in the URL path identifies which CARD Profile config to execute. Superset credentials are resolved from environment variables at runtime — they are never stored as plaintext in the profile config.

curl -X POST http://localhost:3099/api/sb/card-profiles/abc-123/provision

Response

{
  "profile_id": "abc-123",
  "steps": [
    { "name": "ddl",        "status": "ok", "tables": ["clinical_site", "patient", "visit"] },
    { "name": "seed",       "status": "ok", "rows":   { "clinical_site": 8, "patient": 50, "visit": 150 } },
    { "name": "superset_db","status": "ok", "database_id": 4 },
    { "name": "datasets",   "status": "ok", "dataset_ids": [12, 13, 14] },
    { "name": "dashboard",  "status": "ok", "dashboard_id": 7 }
  ]
}

Each step is independent — a failed seed step does not abort the Superset provisioning steps.

Provisioning Services

Service	Source File	Responsibility
`ddlGenerator`	`card-api/src/services/ddlGenerator.ts`	Translates JSON-LD schema → `CREATE TABLE` DDL via the DuckDB SQL plugin logic
`seedGenerator`	`card-api/src/services/seedGenerator.ts`	Generates faker.js-based `INSERT INTO` statements from table definitions + row count config
`duckdbConnector`	`card-api/src/services/duckdbConnector.ts`	Executes DDL and INSERTs against `/data/<profile_id>.duckdb`; verifies tables and row counts
`supersetProvisioner`	`card-api/src/services/supersetProvisioner.ts`	Idempotent Superset provisioning — skips already-registered DB connections and datasets
`chartTemplates`	`card-api/src/services/chartTemplates.ts`	Superset chart JSON templates for seed charts; dashboard grouping

Seed Charts

When auto_generate_charts: true is set in the CARD Profile config, the provisioner creates three starter charts:

Chart	Type	SQL
Visits by Type	Bar	`SELECT visit_type, COUNT(*) FROM visit GROUP BY 1`
AE Severity Distribution	Pie	`SELECT severity, COUNT(*) FROM adverse_event GROUP BY 1`
Enrollment by Site	Bar	`SELECT s.site_name, COUNT(p.patient_id) FROM clinical_site s JOIN patient p ON s.site_id = p.site_id GROUP BY 1`

All three charts are grouped into a "[Profile Name] Demo" starter dashboard. Charts can be edited, cloned, or replaced in Superset after provisioning.

DuckDB Scoping

Each CARD Profile gets its own DuckDB file:

/data/<profile_id>.duckdb

This provides simple isolation — reprovisioning a profile replaces only its own DuckDB file, leaving other profiles untouched. The duckdbConnector service resolves the path from the profile ID at runtime.

End-to-End User Journey

1. Open Schema Builder → select "eClinical" from CARD Combobox
   → activates eclinical-ehr-subset.jsonld, sql-duckdb, seed-data-generator plugins

2. Open Mapper View → select nodes → review table/column mappings

3. Click 🔧 → CARD Profile Editor opens
   → Schemas tab:   activate eclinical-ehr-subset.jsonld
   → Datasets tab:  Faker seed, 50 patients / 150 visits / 8 sites
   → Plugins tab:   sql-duckdb + seed-data-generator active
   → Viz Apps tab:  Superset URL + admin credentials configured

4. Click [▶ Provision]
   → card-api: generates DDL → executes on DuckDB → generates seed data
   → card-api: authenticates Superset → creates ClinicalDuckDB connection
   → card-api: registers 4 datasets → creates 3 charts → creates dashboard
   → Schema Builder: per-step toast "✅ DDL · ✅ Seed · ✅ Superset · ✅ Dashboard"

5. Open Superset → Databases → ClinicalDuckDB ✓
   → 4 datasets ready → "eClinical Demo" dashboard with live charts

Secrets and Security

Superset credentials are never stored as plaintext in the CARD Profile config JSONB. The visualization_apps config references only an environment variable name:

{
  "visualization_apps": [{
    "app_id": "apache-superset",
    "connection": {
      "superset_url": "http://superset_app:8088",
      "username": "admin",
      "password_secret_ref": "SUPERSET_ADMIN_PASSWORD"  // env var name only
    }
  }]
}

The provision endpoint resolves the value at runtime via process.env[connection.password_secret_ref]. The actual password lives only in the Docker environment / secrets manager and is never written to the database.

Implementation Status

Phase	Name	Status
C-0	Docker stack (Superset 4.0.0, DuckDB v1.2.1, PostgreSQL 17, Redis 7)	✅ Complete
C-1	CARD API — REST CRUD + Docker service	✅ Complete
C-2a	Project Switcher + CARD Profile Combobox in Schema Builder toolbar	✅ Complete
C-2b	CARD Profile Editor dialog — full 4-tab implementation	🔲 Pending (Sprint S-3)
C-3	`/provision` endpoint — DDL → DuckDB → seed → Superset provisioner	🔲 Pending (Sprint S-4)
C-4	End-to-end demo + starter dashboard + seed charts	🔲 Pending (Sprint S-5)

Verification

# After running [▶ Provision]:

# 1. Verify card-api step results
curl -X POST http://localhost:3099/api/sb/card-profiles/<id>/provision
# → all steps status: "ok"

# 2. Verify DuckDB tables
duckdb /data/<profile_id>.duckdb "SHOW TABLES;"
# → clinical_site, patient, visit, adverse_event

# 3. Verify Superset datasets (requires auth token)
curl http://localhost:8088/api/v1/dataset/ -H "Authorization: Bearer <token>"
# → dataset list includes clinical tables

# 4. Verify dashboard
curl http://localhost:8088/api/v1/dashboard/ -H "Authorization: Bearer <token>"
# → contains "[Profile Name] Demo" dashboard

What It Does​

Architecture​

Quick Start for Apache Superset​

Prerequisites​

Step 1 — Start the Docker Stack​

Step 2 — Start Schema Builder​

Step 3 — Create a Project​

Step 4 — Open the CARD Profile Editor​

Step 5 — Configure the Visualization Apps Tab​

Step 6 — Click [\u25b6 Provision]​

Step 7 — Build Your Dashboard in Superset​

Troubleshooting​

Starting the Stack​

Docker Network​

The /provision Endpoint​

Request​

Response​

Provisioning Services​

Seed Charts​

DuckDB Scoping​

End-to-End User Journey​

Secrets and Security​

Implementation Status​

Verification​
