Schema Builder

Schema Builder is SureCentric's AI-assisted visual schema workbench for creating, editing, validating, and translating structured schemas across JSON-LD, OWL/RDF, SQL DDL, and JSON Schema formats.

In This Section

Introduction — Vision, the problem, and the solution
Tech Architecture — Pipeline diagram, layer responsibilities, and technology stack
How It Works — Session modes, panels, and boot sequence
Schema Builder Features — Features overview: Schema Mode, Data Mode, and Toolbar Reference
UI Reference — Full UI component map with codebase links for every toolbar icon, panel, and dialog
Plugin System — ES module plugin system, loading, registry, and sandboxing
CARD System — Any schema, any dataset, any AI, any visualizer
Developer Reference — Architecture, data flow, key files, and extension points
Plugin Authoring Guide — Build and deploy custom plugins
Plugins Registry — Overview and index of all built-in plugins
Seed Dataset Generator — Generate SQL INSERT seed data using faker.js

Introduction

Schema Builder is SureCentric's AI-assisted visual schema workbench — a purpose-built tool for creating, editing, validating, and translating structured schemas across JSON-LD, OWL/RDF, SQL DDL, and JSON Schema formats. It is the primary authoring surface for the SureCentric platform's semantic layer.

Built as an enhanced fork of MetaConfigurator (Vue 3, MIT License), Schema Builder adds native JSON-LD support, clinical ontology integration, a plugin translation pipeline, an AI view, and the CARD system for end-to-end dataset provisioning.

It runs as:

A standalone web application (npm run dev in SchemaBuilder/meta_configurator/)
An iframe-embedded service inside the SureClinical AngularJS web client
A headless translation service invoked programmatically via plugins

Vision

Schema Builder provides a pre-configured, machine-readable and human-readable schema editor, viewer, and schema generator to support existing SureDrive-based archives with OWL/Nuxeo-based schemas, and adds the ability to generate JSON and DDL for SQL-based databases.

Based on a core schema of JSON-LD, Schema Builder can translate and export to OWL or JSON format. For JSON format, Schema Builder can export to a Schema Catalog or Registry that is used by Apache Superset for the creation of dataset dashboards, reports, charts, and SQL queries.

The Problem

Clinical organizations operate across fragmented, incompatible schema worlds:

World	Format	Used For
Document archives (SureDrive, Nuxeo)	OWL / RDF-XML	Regulatory content models, eTMF, EHR
Relational analytics (Superset, Grafana)	SQL DDL	Dashboards, reports, SQL Lab
API contracts and validation	JSON Schema	REST APIs, data validation
Semantic web and linked data	JSON-LD	Ontology integration, knowledge graphs

Moving a schema between these worlds today requires bespoke conversion tooling, manual DDL authoring, repeated re-entry of the same structural information, and brittle one-way transformations. There is no single canonical representation, no audit trail, and no reproducible pipeline.

The Solution

Schema Builder makes JSON-LD the pivot format — a single canonical representation that is simultaneously:

Valid JSON (readable by any JSON tool)
Valid JSON-LD 1.1 (W3C-compliant linked data, processed by jsonld.js)
The single source of truth for all downstream exports

From one JSON-LD schema, Schema Builder generates:

JSON-LD Schema (canonical)
        │
        ├──► OWL / RDF-XML    → SureDrive archives, Nuxeo content models
        ├──► SQL DDL           → PostgreSQL / DuckDB CREATE TABLE statements
        ├──► JSON Schema       → API validation, schema registries
        └──► SQL INSERT data   → Faker.js seed datasets for Superset dashboards

Every schema change propagates through the pipeline. The same schema that governs a SureDrive archive also generates the analytics warehouse tables and seeds the dashboard data.

Tech Architecture

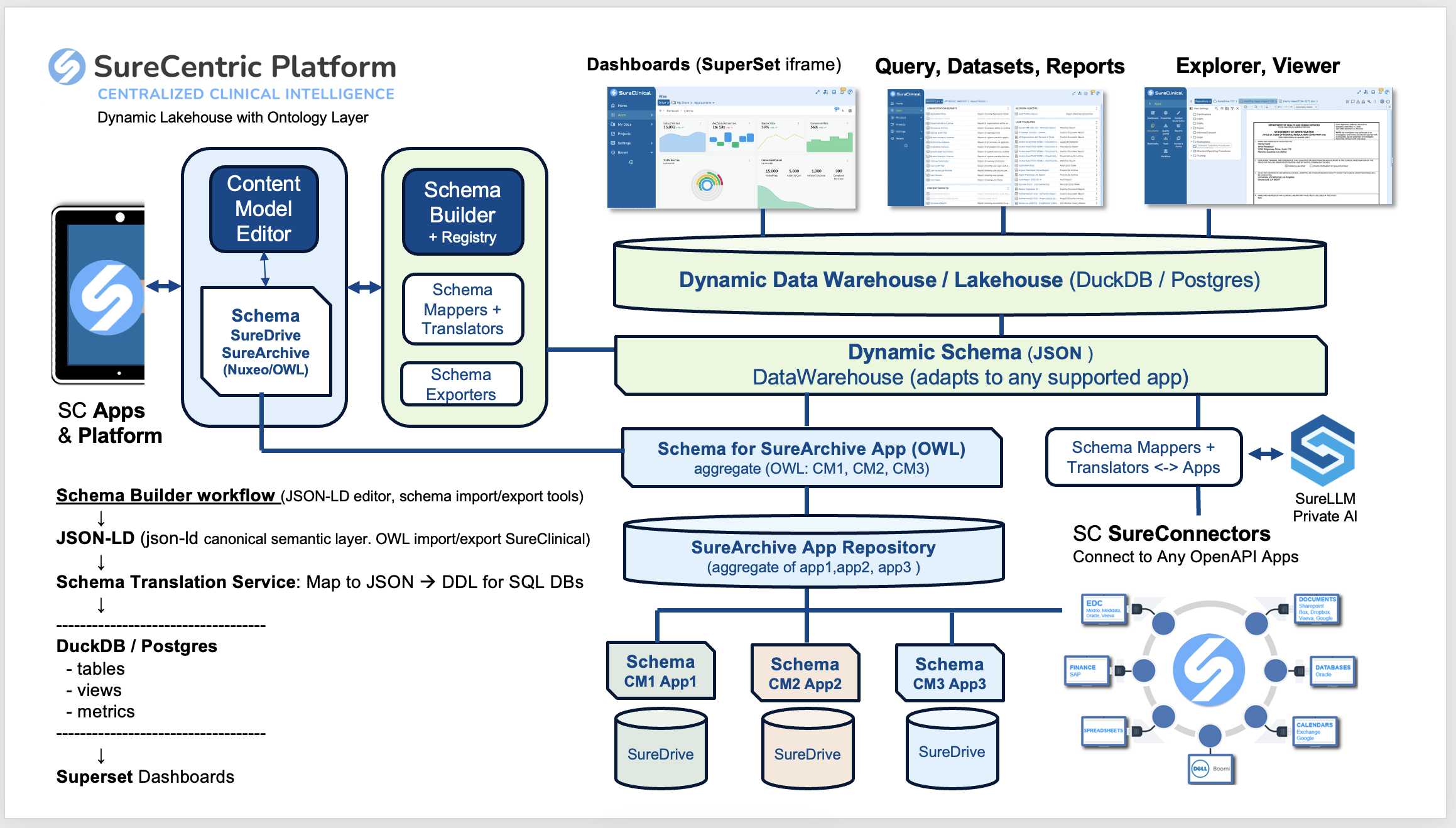

Schema Builder and Data Lakehouse Architecture

Pipeline Flow

① JSON-LD Editor (Schema Builder)
   • Author schemas with @context, @type, @id
   • SPARQL autocompletion against ontology endpoints
   • Real-time AJV + JSON-LD 1.1 validation
   • Visual diagram (Vue Flow)

            ↓

② JSON-LD Canonical Layer
   • CareLex/eClinical @context namespace
   • OWL import/export for SureClinical archives
   • Versioned schema catalog/registry

            ↓

③ Schema Translation Service (Mapper View + Plugins)
   • JSON-LD → DDL (PostgreSQL / DuckDB CREATE TABLE)
   • JSON-LD → OWL (Nuxeo archive format)
   • JSON-LD → JSON Schema (API validation)
   • JSON-LD → SQL INSERT (Faker.js seed data)

            ↓

④ Data Warehouse / Lakehouse + Visualizer
   • Tables, views, metrics auto-created from DDL
   • Superset datasets auto-registered via CARD /provision
   • NL2SQL grounded by compiled schema metadata

How Schema Builder Works

Schema Builder operates in three session modes, selectable via the tab strip at the top of the toolbar (defined in sessionMode.ts):

Mode	Route	Purpose
Schema Mode	`/schema`	Author, edit, visualize, and translate JSON-LD schemas
Data Mode	`/data`	Edit and validate data documents against the active schema
Settings Mode	`/settings`	Configure Schema Builder's own behaviour via a settings schema

Each mode activates a different set of panels — resizable, togglable panes each providing a distinct view or editing surface. The active panel layout is persisted in sessionStore.ts.

Schema Mode

Schema Mode is the primary mode for authoring and managing JSON-LD schemas. It provides six panels:

Text View — Code Editor

The raw code editor panel — powered by Ace Editor — provides direct JSON/YAML/XML editing with syntax highlighting and inline validation annotations.

Source: CodeEditorPanel.vue · AceEditor.vue

Bidirectionally synced with all other panels — any change anywhere reflects here immediately
Inline error annotations from AJV (JSON Schema Draft 2020-12) and the custom JSON-LD 1.1 multi-error linter
Format selector in the bottom toolbar switches between JSON, YAML, and XML representations
Full undo/redo stack with edit history

GUI View — Visual Editor

A schema-driven property tree editor that renders the active JSON-LD document as a navigable, form-like interface — no JSON syntax knowledge required.

Source: GuiEditorPanel.vue

Renders a SchemaInfoPanel showing which schema governs the current view
Warns if the schema contains unresolved external $ref references
Per-property panels render type-appropriate input controls for strings, numbers, booleans, arrays, and objects
Click any node in the property tree to navigate and select it — selection syncs across all open panels

Diagram View — Schema Graph

An interactive node-graph powered by Vue Flow that visualizes JSON Schema types, properties, and $ref relationships as a navigable diagram.

Source: SchemaDiagramPanel.vue

Zoom, pan, and click nodes to navigate — clicking a node selects it in all other panels
In-diagram editing when edit mode is enabled
Detects JSON-LD documents (vs. JSON Schema) by checking for @context, @graph, @id/@type at root and shows a contextual hint overlay

Mapper View — Translation Workbench

The Mapper View is Schema Builder's schema translation engine — the primary surface for generating SQL DDL, OWL, and other output formats from a JSON-LD schema.

Source: MapperPanel.vue · mapperTypes.ts

How it works:

Loads all JSON-LD nodes from the active schema as MappingRow[] — each row has: nodeId, nodeType (e.g. owl:Class, owl:DatatypeProperty), nodeLabel, mapTo (editable target name), targetType, notes, selected
User selects rows and sets their target names and types
User picks an output format from the plugin-driven dropdown
Output is previewed inline and exported

Supported output formats (via the Plugin System):

Format	Plugin	Status
PostgreSQL DDL	`com.sureclinical.sql-postgresql`	✅ Built-in
DuckDB DDL	`com.sureclinical.sql-duckdb`	✅ Built-in
SQL INSERT seed data	`com.sureclinical.seed-data-generator`	✅ Built-in
RDF Turtle, XLSX, JSON, OWL	Custom plugins	🔲 Extensible

Mapper state (row selections, target names, notes) saves and loads as .mapper.json sidecar files. Table zoom (0.5×–1.5×) and row filters (all / selected / unselected) aid large-schema navigation.

AI View — Schema AI Assistant

The AI View provides a natural-language interface for creating, modifying, querying, and exporting schemas using any OpenAI-compatible LLM endpoint.

Source: AiPromptsPanel.vue · AiPromptsSchema.vue · aiEndpoint.ts

AI Action	Description
Create schema	Describe a schema in natural language → Schema Builder generates a JSON-LD schema
Modify schema	"Add a `patient_id` field as a UUID primary key" → AI applies the change
Ask a question	"What does this `owl:Class` represent?" → AI answers in context
Export / convert	"Convert this to a FHIR-compatible JSON Schema" → AI reformats

Configuration: Default endpoint https://api.openai.com/v1/chat/completions, default model gpt-4o-mini. Any OpenAI-compatible endpoint (Azure OpenAI, SureLLM, local Ollama) works. Set via the Settings schema (aiIntegration key).

Security: API key stored in a reactive in-memory ref only, optionally persisted to sessionStorage (cleared when tab closes). Never written to localStorage. See apiKey.ts.

Documentation View

Converts the active JSON Schema to structured Markdown documentation, rendered as HTML.

Source: DocumentationPanel.vue

Auto-generates human-readable docs from any JSON Schema — entity names, descriptions, properties, types, constraints
Navigation anchors sync with schema editor selection
"Download Markdown" button exports the generated documentation

Data Mode

Data Mode switches Schema Builder into a dataset editor — the active JSON-LD schema governs validation of a live data document. All panels are re-purposed for data rather than schema editing.

Data Editing Panels

Panel	Data Mode Behavior
Text View	Edit raw JSON/YAML data with AJV validation running against the active schema
GUI View	Form-driven data entry governed by the schema's property definitions
Table View	`ListAnalysisPanel.vue` — detects all arrays in the document and renders a sortable, paginated DataTable with CSV export
AI View	Data-specific AI operations (generate, modify, ask, export)

Table View

The Table View is especially useful for JSON-LD ontologies — it detects all arrays (including root-level @graph arrays) and renders them as structured grids with sorting, pagination, grid lines, and striped rows. Built-in CSV export.

Data Mode AI Operations

The AI View routes to AiPromptsData.vue in Data Mode:

Action	Description
Generate data	"Generate 20 patient records matching this schema" → AI produces validated JSON
Modify data	"Set all `status` fields to `active`" → AI applies the change
Ask a question	"How many records have a missing `visit_date`?" → AI answers
Export to format	"Convert this JSON to CSV" → AI reformats

Data Import and Transform

CSV Import — convert a CSV file to a JSON array document
Data Mapping dialog — AI-assisted transform to align an imported dataset to the active schema's structure
Data Export dialog — export data via a Handlebars-style text template
Infer Schema from Data — auto-generate a JSON Schema from any loaded data document
Drag-and-drop — drop any .json, .jsonld, .csv, or .yaml file onto any panel to load it
Snapshot sharing — encode the full state (schema + data) into a shareable URL

The toolbar has two rows, implemented in TopToolbar.vue and menuItems.ts:

Row 1 (top): Mode selector (Schema / Data / Settings) · mode-specific action icons · app title · dark/light toggle · ⋮ overflow menu

Row 2 (bottom): Mode-specific action icons · zoom controls · search · Project Switcher · CARD Profile Combobox · format selector

⋮ overflow menu: Create Project · Settings · View Plugins · SureCentric Docs · About Schema Builder · Restore default settings

Schema mode toolbar (bottom row): New Schema · Open File · Import Schema · Download · Utility · Generate Code · Share Snapshot · Undo · Redo · panel toggles (Text / GUI / Diagram / Mapper / AI / Documentation)

Data mode toolbar (bottom row): New Data · Open Data · Import Data · Download · Utility · Share Snapshot · Undo · Redo · panel toggles (Text / GUI / Table / AI)

Plugin System

Schema Builder's translation capabilities are fully extensible via ES module plugins. See the Plugin System page for:

The SchemaBuilderPlugin interface (translator, panel, importer, validator, exporter types)
Loading plugins from URL, file, or programmatically
Writing plugins for Node.js, Python (via REST adapter), Java Spring Boot, or sandboxed via OpenSandbox
The Plugin Manager UI (⋮ → View Plugins)

CARD System

The CARD System connects Schema Builder to any downstream analytics platform via a named, reusable configuration — any schema, any dataset, any AI, any visualizer.

Key components:

CARD Profile — named config: schemas + datasets + plugins + visualization target
CARD API — REST service at :3099 for CRUD and /provision
Project Switcher — toolbar combobox scoping all profiles to a project
CARD Profile Editor — 4-tab dialog (Schemas / Datasets / Plugins / Visualization Apps)
SS CARD Plugin — Python package that auto-provisions Apache Superset DB connections and datasets

Technology Stack

Layer	Technology
Framework	Vue 3 + Vite + TypeScript
UI Components	PrimeVue 4 (Lara preset, SureCentric brand `#29619B`)
JSON-LD processing	`jsonld.js` (W3C 1.1 processor)
JSON Schema validation	AJV (Draft 2020-12) + custom JSON-LD multi-error linter
Diagram	Vue Flow + dagre layout
Code editor	Ace Editor with gutter annotations
Fake data	`@faker-js/faker` with seeded RNG for reproducibility
Plugin loader	Native ES `import()` with Blob URL sandboxing
State management	Pinia (Vue 3 reactive stores + sessionStorage persistence)
AI gateway	Any OpenAI-compatible endpoint (default: `gpt-4o-mini`)
Upstream base	MetaConfigurator v2.2.0 (MIT)
